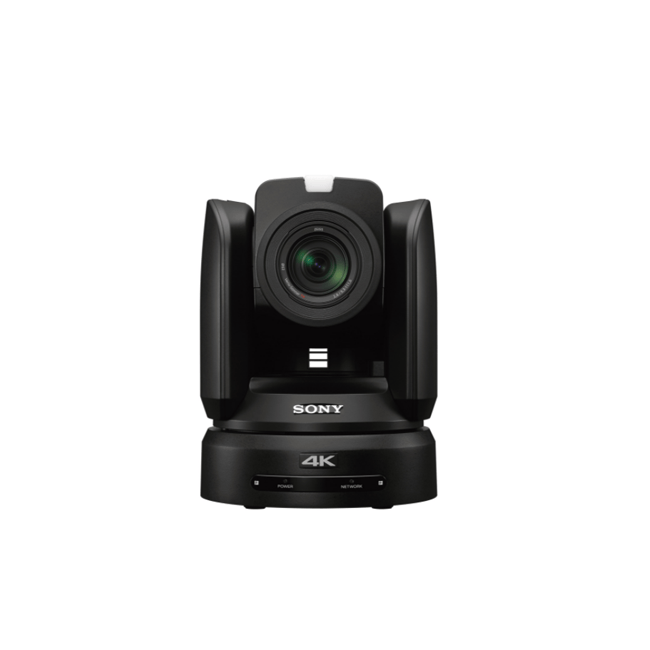

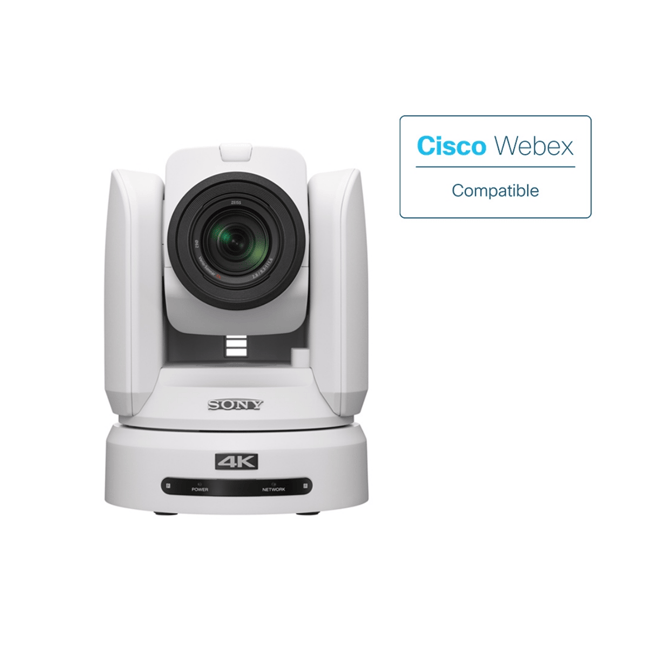

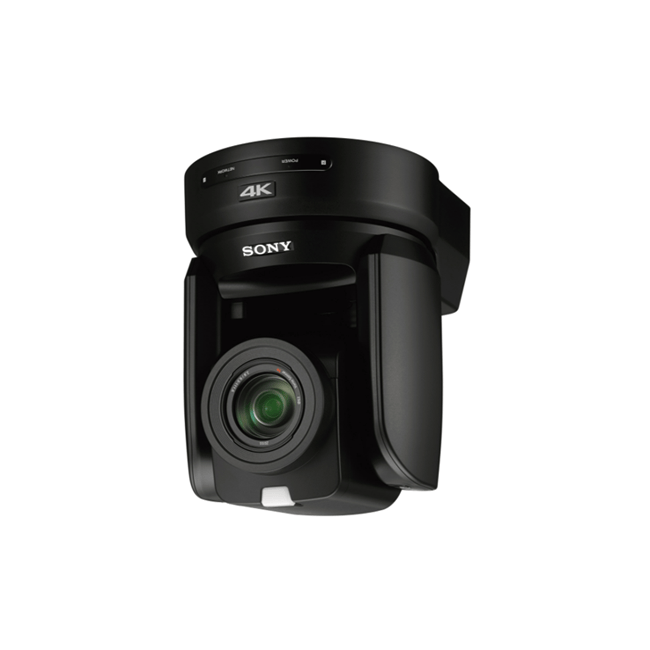

SONT BRC-X1000 – PTZ 4K IP CAMERA

Solution > PTZ Camera > SONY BRC-X1000 – PTZ 4K IP CAMERA


Features of Sony BRC-X1000 PTZ Camera

  • Excellent 4K images, even in low light environments
  • Zoom up to 24x (in FullHD) and 18x in 4K
  • Wide 70° viewing angle
  • NDI|HX support (via optional license)
  • Remote viewing over the internet with a web browser
  • RTSP and RTMP* compatibility
  • Easier and more affordable installation thanks to PoE (Power over Ethernet) support
  • Ideal for live production. Integrated Genlock and Tally lamp
  • Quick and uncomplicated setup. On-scene file function for applying settings to multiple cameras

Description

  • Video Output 3G-SDI/HDMI (4K output only via HDMI)
  • Zoom Ratio 18x (4K with CIZ)/24x (HD with CIZ), (12x Optical Zoom)
  • Image Sensor 1″ Exmor R CMOS
  • Signal System (Max) 3840 x 2160 30p/1080 60p
  • Horizontal Viewing Angle (Wide) Approx. 64.6 degrees
  • Pan/Tilt Range P : ±170 T: +90, -30
  • Max Preset Speed [deg/s] 0.3 to 60°/sec (Pan), 0.3 to 60°/sec (Tilt)
  • Number of Preset 100
  • Picture Freeze Preset Yes
  • Body Colour Black
  • Control Interface VISCA, VISCA over IP, RJ-45
  • PoE+ Yes (IEEE802.3at compatible)
  • External Sync In Yes
  • AC adapter DC12V
  • Option NDI® / HX
