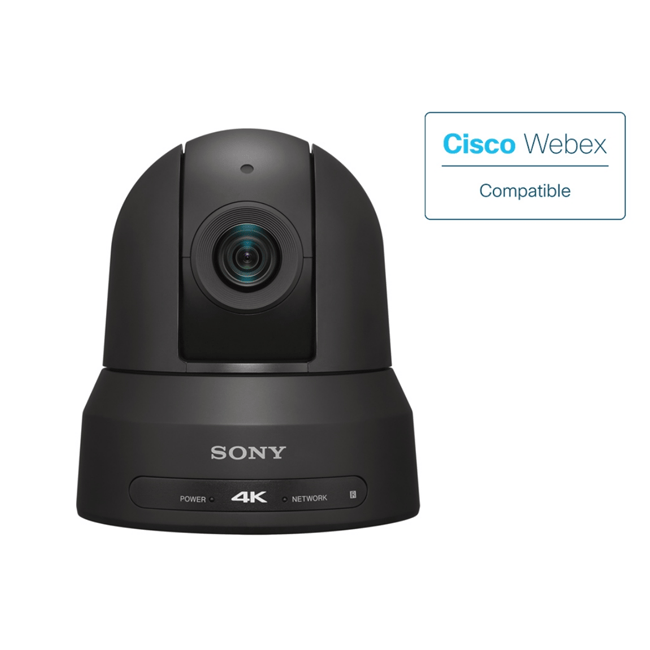

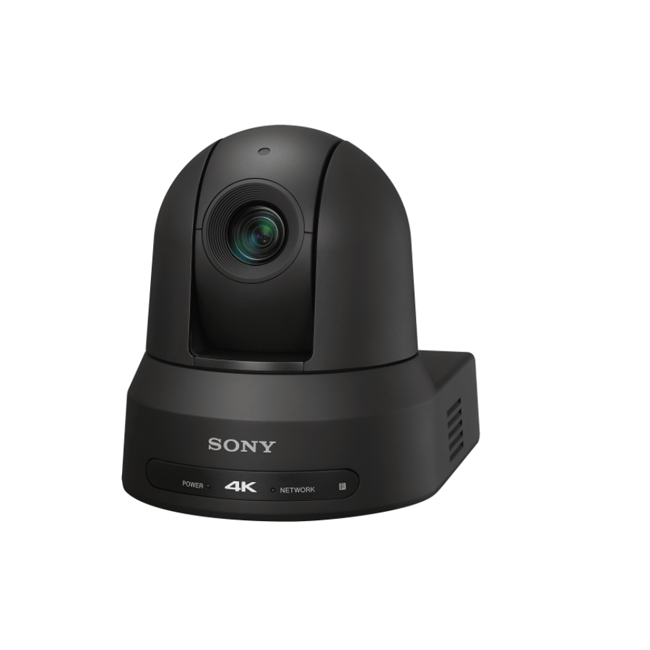

BRC-X400 – PTZ 4K IP CAMERA
Solution > PTZ Camera > BRC-X400 – PTZ 4K IP CAMERA
Features of Sony BRC-X400 PTZ Camera
‧ Excellent 4K images, even in low light environments
‧ Zoom up to 80x (in FullHD) and 30x in 4K
‧ Wide 70° viewing angle
‧ NDI|HX support (via optional license)
‧ Compatible with S700PTP, CGI and VISCA control protocols
‧ Remote viewing over the internet with a web browser
‧ RTSP and RTMP* compatibility
‧ Easier and more affordable installation thanks to PoE (Power over Ethernet) support
‧ Ideal for live production. Integrated Genlock and Tally lamp
‧ Quick and uncomplicated setup. On-scene file function for applying settings to multiple cameras
Description

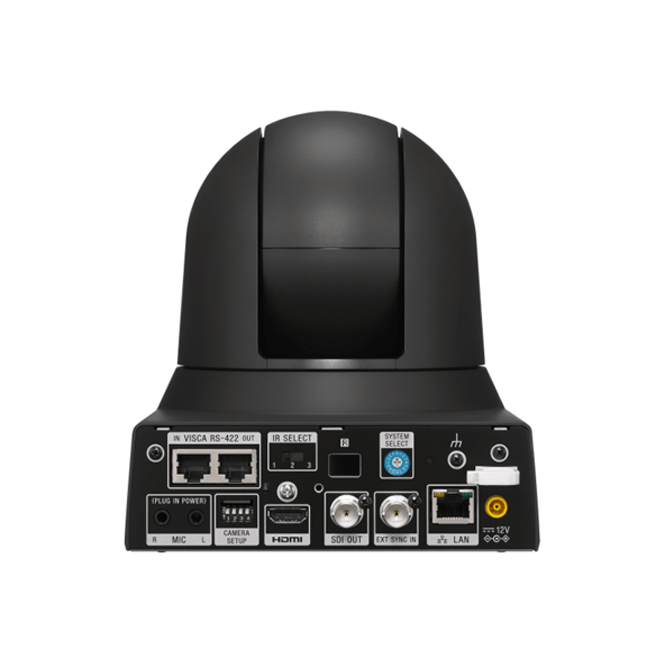

- Video Output 3G-SDI/HDMI (4K output only via HDMI)
- Zoom Ratio 30x (4K with CIZ)/40x (HD with CIZ), (Digital 12x)
- Image Sensor 1/2.5 Exmor R CMOS
- Signal System (Max) 3840 x 2160 30p/1080 60p
- Horizontal Viewing Angle (Wide) Approx. 70 degrees
- Pan/Tilt Range P : ±170 T: +90, -20
- Max Preset Speed [deg/s] 300°/sec (Pan), 126°/sec (Tilt)
- Number of Preset 256 (CGI)
- Picture Freeze Preset Yes
- Body Colour Black and White
- Control Interface VISCA, VISCA over IP, S700PTP, CGI
- PoE+ Yes (IEEE802.3at compatible)
- Audio 2ch
- IP Streaming Yes
- External Sync In Yes
- AC adapter DC12V
- Option NDI® / HX
