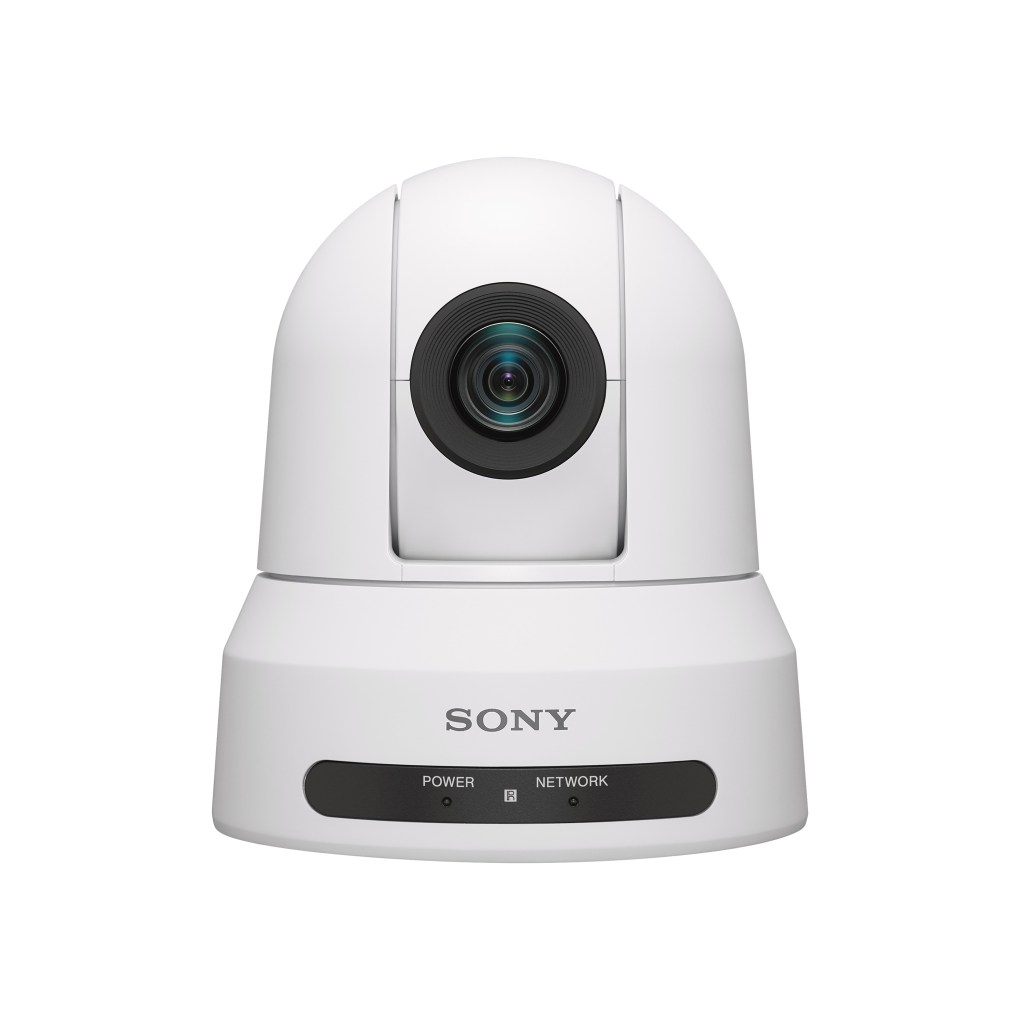

SONY SRG-X400 – PTZ 4K IP CAMERA

Solution > SONY PTZ Camera > SONY SRG-X400 – PTZ 4K IP CAMERA


Features
‧ Upgrade option for 4K recording (via optional license)
‧ Zoom up to 40x (in FullHD) and 30x in 4K
‧ Wide 70° viewing angle
‧ Ideal for recording lessons. Together with the IA-based Edge Analytics Appliance REA-C1000 for seamless tracking of the speaker’s movements and automatically obtaining a clipped image of the speaker.
‧ Default settings for high-speed motion and image freezing. Swivel and tilt movements up to 300º per second.
‧ Smooth rotation, tilt and zoom operations. PTZ Motion Synchronization
‧ NDI|HX support (via optional license)
‧ Easier and more affordable installation thanks to PoE (Power over Ethernet) support

We are Authorized Distributor of SONY

Description

  • Video Output: 3G-SDI/HDMI (4K output only via HDMI)
  • Zoom Ratio: 30x (4K with CIZ)/40x (HD with CIZ), (Digital 12x)
  • Image Sensor: 1/2.5 Exmor R CMOS
  • Signal System (Max) 3840 x 2160 30p/1080 60p
  • Horizontal Viewing Angle (Wide) Approx. 70 degrees
  • Pan/Tilt Range P : ±170 T: +90, -20
  • Max Preset Speed [deg/s]: 300°/sec (Pan), 126°/sec (Tilt)
  • Number of Preset 256 (CGI)
  • Picture Freeze Preset: Yes
  • Body Color: Black and White
  • Control Interface: VISCA, VISCA over IP
  • PoE+: Yes (IEEE802.3at compatible)
  • Audio 2ch
  • IP Streaming: Yes
  • AC adapter: DC12V
  • Option NDI® / HX
