排隊系統

解決方案 > 排隊系統

組件

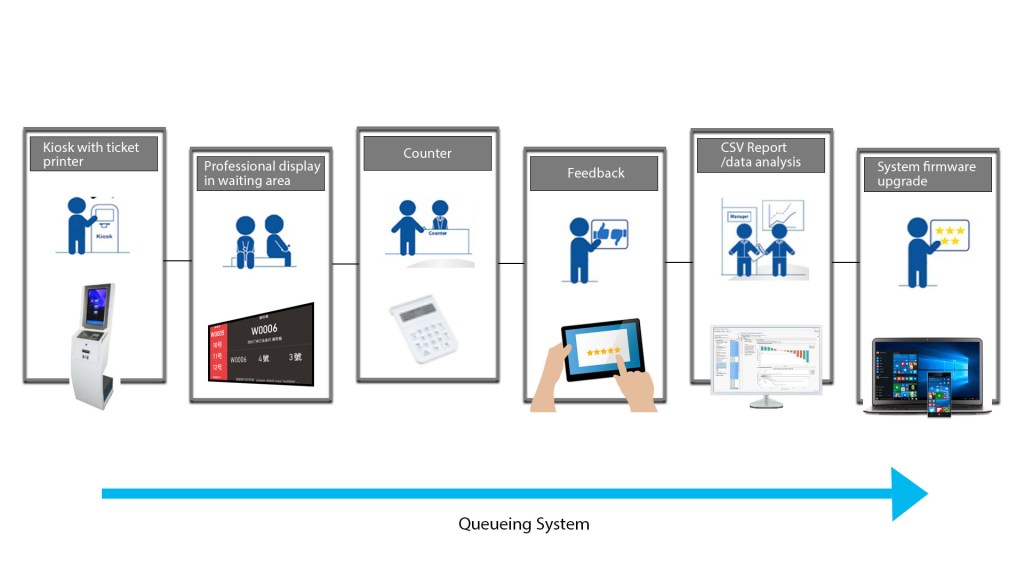

Process

規格

Brightsign HD1024

VIDEO ENGINE DECODER
True 4K@60p video decoding
Single 4K or 1080p60 video decoding

MEDIA FORMATS
Video Codecs for 4K content: H.265/H.264
Video Containers for 4K H.265/H.264 content: .ts, .mov, .mp4
Video Codecs for Full HD: H.265, H.264(MPEG-4, Part 10),
MPEG-2, MPEG-1 X X
Video Containers for Full HD: .ts, .mpg, .vob, .mov, .mp4, .m2ts
Images: BMP, JPEG, PNG
Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
HTML5 (Mainstream)

DISPLAY RESOLUTIONS
4K resolutions: 4096×2160, 3840×2160, 3840×600
Upscaling to: 3840x2160x24/25/29.97/30p
1920×1200, 1920x1080x24/25/29.97/30/50/59.94/60p,
1920x1080x50/59.94/60i, 1600x1200x60p, 1440x1050x60/75p,1440x900x60/75p, 1360x768x60p, 1280x1024x60/75p,1280x960x60p, 1280x800x60p/75p, 1280x768x60p,
1280x720x50/59.94/60p, 1024x768x60p, 800x600x60/75p, 720x576x50p/50i, 720x480x59.94/60p/60i, 640x480x60p

HARDWARE INTERFACES
External micro SD Slot (SDHC and SDXC); SDHC storage up to 32GB SDXC storage up to 2TB
USB High Speed Host Port (also supports content updates)
12-pin Phoenix GPIO port with 8 bi-directional GPIOs
3.5mm RS-232 Serial Port
3.5mm IR In/Out
3.5mm Audio Out (analog -or- SPDIF digital, nonsimultaneous)
HDMI 2.0a Out
Ethernet (Gigabit)
M.2 (E) Keyed Wi-Fi/Bluetooth Connector
Wi-Fi External Antenna Connector (optional)
Status LEDs (Power, Error, Busy, Update)
Reset and Service Buttons
Real Time Clock

Dimensions (W x H x D) 159.9 x 22 x 144.2mm
Weight 12 oz
Power 12V / 1.5A (18 Watts)

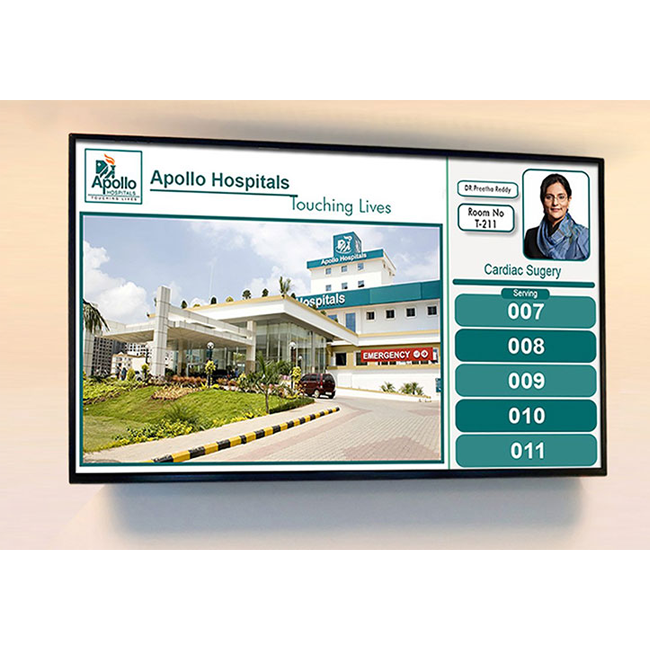

工作實例
